To allow everyone to experience the advantages of Eralytics products firsthand, Panan Testing now offers a free trial of Eralytics products.
Panan Testing has reached a cooperative deal with Eralytics in the field of lubricant oil monitoring (OCM), with Panan Testing responsible for the promotion and technical services of Eralytics' OCM product line in China.

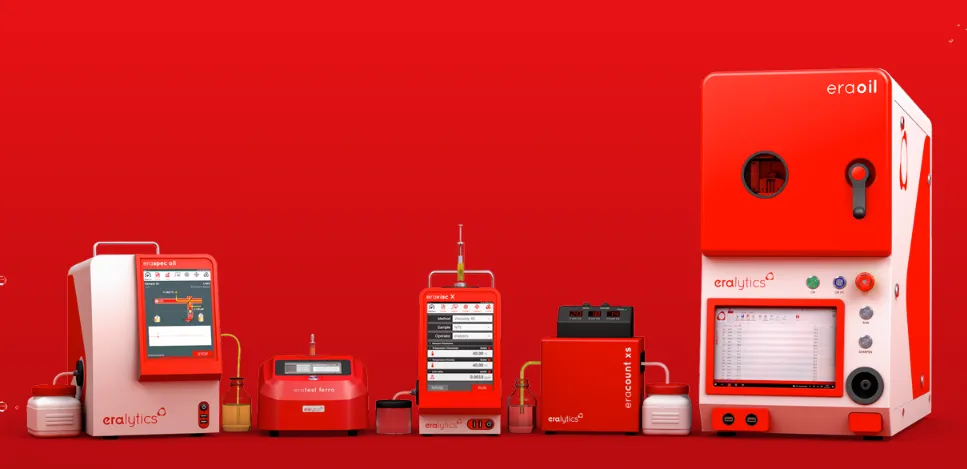

Let me introduce you to the Eralytics OCM family products:
Eravisc X 2-in-1 Portable Viscosity and Density Meter:
With only 3mL of sample, it quickly measures viscosity and density between 15℃ and 100℃. Its density measurement complies with ASTM D4052 and ISO 12185, and the viscosity measurement accuracy complies with ASTM D445 and ASTM D7042. The viscosity measurement period is 60 seconds and the density measurement is only 15 seconds.
Eralytics patented FillProofTM technology can detect tiny bubbles within the sample, ensuring high accuracy of density measurements. Combined with ultra-fast temperature change technology, this entire viscosity index testing in just 10 minutes.
ERAOIL mini Portable Elemental Analysis Spectrometer:
Despite its compact size, ERAOIL mini has an integrated electrode grinder, computer control, and ventilation system. It only occupies 0.5 square meters of space and can detect up to 32 elements while complying with the following standards: ASTM D6728, ASTM D6595, NB/SH/T 0865. The detection of these 32 elements is within 30 seconds.

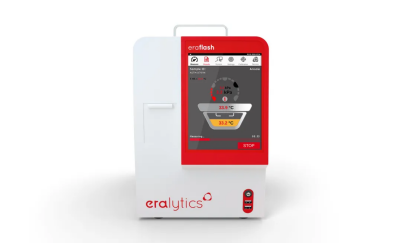

ERAFLASH Automatic Micro Closed Cup Flash Point Tester:
The ERAFLASH Automatic Micro Closed Cup Flash Point Tester is an innovative continuous closed cup flash point (CCCFP) that requires only 1-2ml sample amount. This significantly reduces the legacy flash point smoke, which is environmentally friendly and can complete testing within just 10 minutes. This complies with ASTM D6450, D7094, and SH/T 0768. It can calculate results for ASTM D93, GB/T 261, ASTM D56, ASTM D3828. Since this is closed cup tester, thus eliminating fire hazards in testing environment. The temperature range can be from 0-200℃ (optional from -25℃ to 420℃), and it can test up to 12 samples within an hour.
ERASPEC OIL Mid-Infrared Lubricant Analyzer:
ERASPEC OIL Mid-infrared lubricant analyzer is compliant with ASTM E2412, which can detect degradation products (oxides, sulfides, nitrites), additive consumption, and contaminants. Its built-in extensive database can calculate total acid number (TAN), total base number (TBN), viscosity, etc., and can also help record oil trends.
ERADENS Automatic Density Meter:
Eralytics' densitometers include the ultra-compact 5-digit density meter ERADENS XS and the high-precision ERADENS X, complying with: ASTM D4052, D5002, D5931, ISO12185.
ERADENS XS can be operated wirelessly via a mobile app, is battery-powered for mobile detection. With a battery weighing only 2.1KG, it is lightweight and robust.
ERADENS X provides 5-digit precision density results, offering high-precision density measurement over a wide temperature range of 0℃-100℃, with FillProof patent technology to minimize bubble interference. Density measurement can be completed in just 15 seconds.

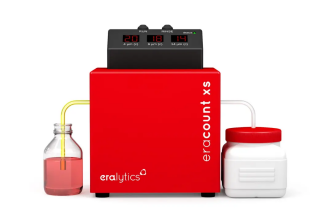

ERACOUNT XS Automatic Portable Rapid Particle Counter:
Compliant with ISO 4406, ISO 11171, ISO 4402, it measures up to 8 different particle size channels in 60 seconds with only 10mL of sample. It can be used in conjunction with Eralytics' analyzers, weighing only 3 kilograms.
Panan Testing now offers trials for the ERAFLASH Automatic Micro Closed Cup Flash Point Apparatus, ERASPEC OIL Mid-Infrared Lubricant Analyzer, and Eravisc X 2-in-1 Portable Viscosity and Density Meter. On behalf of Eralytics, feel free to come and experience the new era of oil condition monitoring (OCM).
