Eraly & Associes is a French analytical instrumentation company established in 1971, specializing in elemental analyzers and laboratory furnaces for industrial and research applications. As both a designer and manufacturer, the company is recognized as one of France’s leading providers of analytical instruments and laboratory furnaces. Their solutions are renowned for their exceptional quality and technical performance, serving the demanding needs of industrial and scientific professionals.

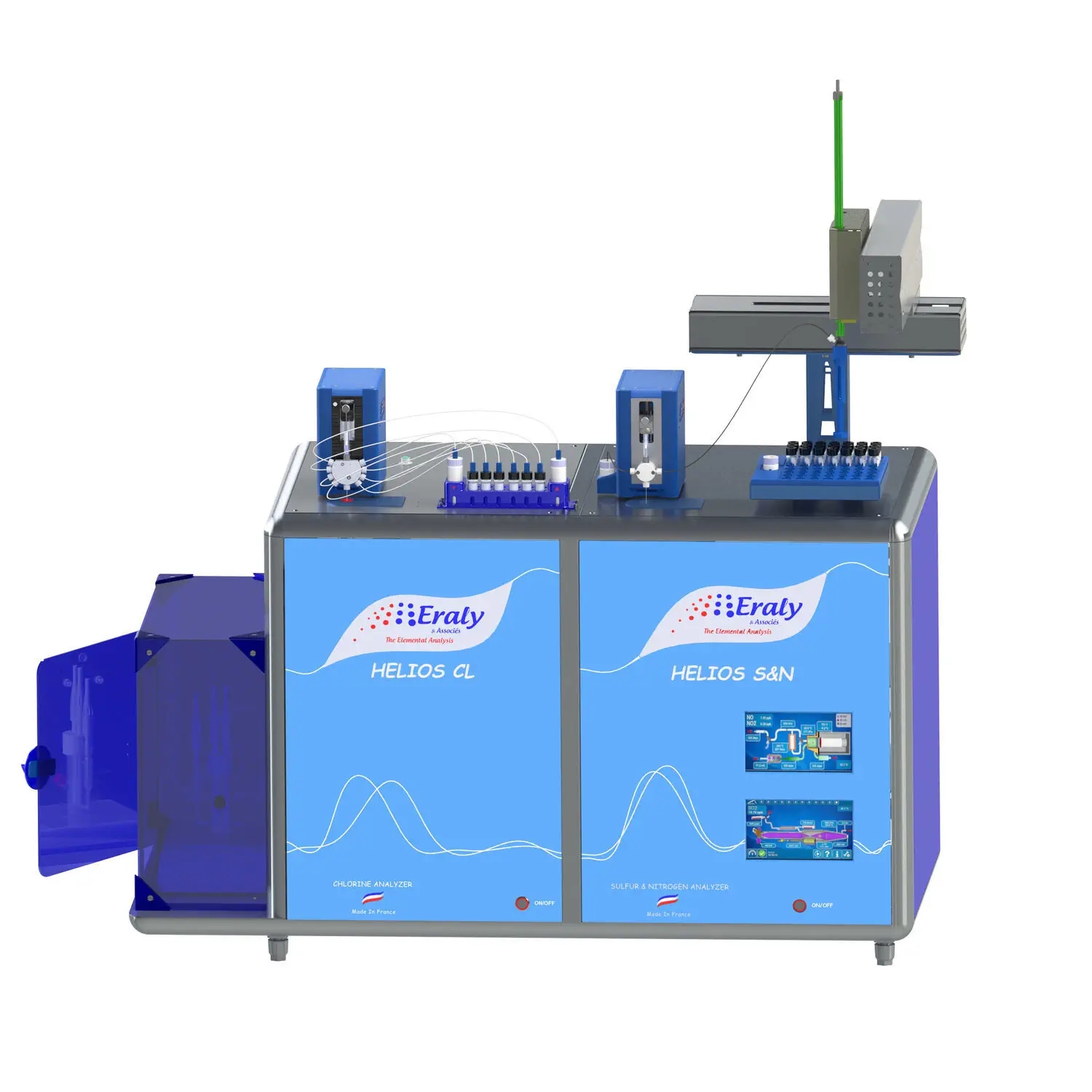

Total Sulfur, Nitrogen, and Chlorine Analyzer

Simultaneous Multi-Element Measurement: The HELIOS SN&CL Analyzer enables fast, fully automated, and simultaneous detection of ultra-low levels of sulfur, nitrogen, and chlorine in petroleum products—delivering comprehensive and efficient support for your analytical workflows.

Independent Combustion Tube Design: Equipped with two separate combustion tubes—one dedicated to sulfur and nitrogen, the other to chlorine—this design minimizes sample cross-contamination and significantly reduces downtime and reagent consumption during system flushing and maintenance, thereby enhancing overall analytical efficiency.

Utilizing UV fluorescence for sulfur, chemiluminescence for nitrogen, and coulometry for chlorine, the system automatically selects and executes the optimal analysis method without requiring manual adjustments based on sample concentration. This ensures high precision and reliability across a wide measurement range.

Automated Rinsing and Drying Function: The system features fully automated rinsing and drying, eliminating the need for sulfuric acid absorbers. This not only enhances operator safety by avoiding direct contact with corrosive liquids but also streamlines routine operation for greater convenience.

Intelligent Service Support: The system is equipped with built-in diagnostic functions that detect early signs of malfunction, enable preventive maintenance, identify required service actions, and display alerts—ensuring stable and uninterrupted instrument performance.

Compliance with Standards:

Total Sulfur Standards: ASTM D5453, ASTM D6667, ASTM D7183, ASTM D7551, ISO 20846, SH/T0689, NF EN 12260

Total Nitrogen Standards: ASTM D4629, ASTM D7184, ASTM D5762, ASTM D6069, GB/T 17674, SH/T0657

Total Chlorine Standards: ASTM D4929, ASTM D5808, ASTM D5194, ASTM D6721, GB/T18612, SH/T1757, GB/T 23971-B, SH/T 0677-A, UOP 779, ISO 9562, NF EN 12260, NF EN 1407

Technical Specifications:

Detection Limits: 5ppb (Sulfur) / 5ppb to 10% (Nitrogen); 50ppb to over 80% (Chlorine)

Quantification: 10ppb (Sulfur) / 10ppb to 10% (Nitrogen); <0.1ppm to over 80% (Chlorine)

Sample Volume: 20 to 80μL liquid, 10mL gas, 20μL liquefied gas

Optional Samplers: Available to meet the analytical needs of various samples.

Furnace Temperature: Up to 1100°C with a precision better than ±1°C, no gas required during heating before reaching the operating temperature.

5-year hardware warranty

The HELIOS SN&CL Total Sulfur, Nitrogen, and Chlorine Analyzer is widely used across the petroleum, chemical, environmental, and research sectors. It is an indispensable tool for reliable and efficient elemental analysis in a wide range of applications.
