Diesel engine oil dispersion and soot monitor DT100 DT100DL AD systems
Category： Others
Method Standard： ASTM D7899
Application： Condition Monitoring
Brand： AD systems
Hotline：
021 - 63175588
Products description
Products characteristic

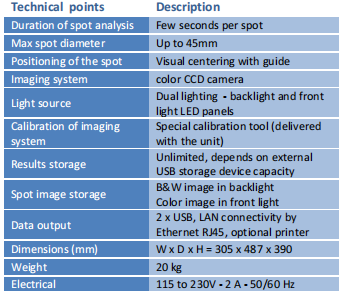

technical specification
The requirement for machinery and oil condition monitoring is becoming ever more apparent as maintenance costs increase while production capacity and equipment performance are maximized.
Monitoring the amount of soot in diesel engine lubricant oil is important but more important is to measure the dispersancy of the oil. This gives important information on the residual capacity of the oil in service to keep carbon soot in suspension and prevent sludge formation.
Depletion of detergent and dispersant additives leads to rapid agglomeration and deposition of soot onto machine surfaces. It can increase wear and damage engine components. In addition water or glycol contamination can quickly knock out dispersancy performance even without an increase in soot load.
The DT 100 helps to check on the health of lubricant oil in service and alert when oil degradation starts to compromise the engine durability.
- Unique instrument able to simultaneously quantify dispersancy and soot content
- Ideal for trend analysis in OCM programs anddiagnosis on diesel engines
- Easy to use
- Contamination index(IC)：0.1%～5%
- Dispersancy(MD)：100（Good）～0（Very bad）
- Combined Performance Rating(DP)：0（Good）～200（Very bad）
- Duration of spot analysis:Few seconds per spot
- Max spot diameter:Up to 45mm
- Imaging system:DT100:monochrome CCD/DT 100DL:color CCD camera
- Light source:DT100:LED backlight panel/DT 100DL:Dual lighting-backlight and front light LED panels
- Calibration of imaging system:Special calibration tool
- Results storage:Unlimited,depends on external USB storage device capacity
- Spot image storage:DT:B&W image in backlight/DT100DL:Color image in front light
The DT100DL is the only instrument that automatically and simultaneously measurescontamination index (content of sooty insoluble material in the oil) and providesunique information on oil dispersancy. This unique information helps tojustify corrective actions and maintenance planning decisions. It is an integralpart of the OCM programs for in-service
lubricants.
The DT100DL takes a spot image with a built-in digital camera. In seconds,the software scans and analyzes all the different areas of the oil spot and automaticallycalculates the quantitative quality parameters of motor oil in service:
The dispersancy (MD) representing the capacity of the oil to maintain the insoluble in suspension. It is expressed by an index from 100 (ideal) to 0 (no dispersancy)
The contamination index (IC) representing the percentage of insoluble matters present in the oil.
The combined performance rating (DP) which is a mathematical combination of both IC and MD parameters. The DP is very useful to follow-up oil degradation in oil condition monitoring program.
