CCS-2100 Automated Cold-Cranking Simulator CANNN
Category： Viscosity Measurement
Method Standard： ASTM D5293, SAE J300
Application：
Lubricants
Brand： CANNON
Clicks：630次
Hotline：
021 - 63175588
Products description
Products characteristic

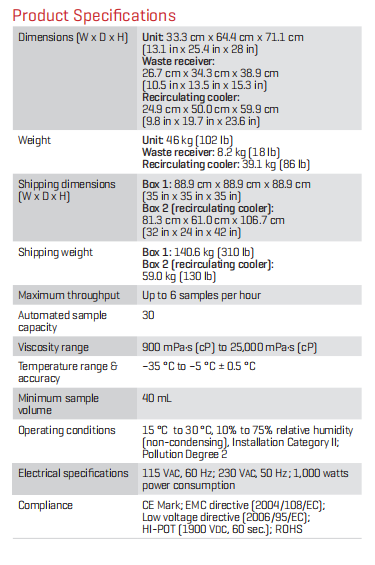

technical specification
The automated CCS-2100 is a cold-cranking simulator for measuring apparent viscosity of engine oils from –35°C to –5 °C. Automated sample loading, operation and solvent free cleaning permit unattended processing of up to 30 samples at one time.
ASTM D5293, SAE J300, GB/T6538
Test Temperature：-5℃ ～ -35℃
Viscosity Range：1,500 mPa•s ～ 27,000 mPa•s
Cooled by Built-in Soild-State Thermoelectric Modules
Improved Precision Over Earlier Models
Powerful VISCPRO for Windows Software
Fully Automatic Operation
Extended Range-900 to 25,000.00 mPa•s (cP)
Needs No Solvent Cleaning
Dimensions: 711 mm (28 inches) high x 333 mm(13-1/8 inches) wide
x 645 mm (25-3/8inches) deep (add at least 100 mm (4inches) to depth
for installation)
Weight: 46 kg (102 lbs.)
Shipping Weight: Approximately 136 kg (300 lbs)
Electrical: CCS-2100: 115 volts AC ±10%,60 Hz, 1000W
CCS-2100F: 230 volts AC ±10%,50 Hz, 1000W
Operating Conditions:15-30°C, 10%-90% RH non-condensing,Installation Category II, Pollution degree 2
Computer: Computer not included. Please contact CANNON for specifications.
Compliance: CE Mark: EMC directive(89/336/EEC);Low voltage directive (73/23/EEC);HI-POT (1900 VDC, 60 sec.)
Sample Volume: 40-50 mL required
