The operation of miniAV-LT is very simple. Users need to fill about 6ml of the sample into the sample cup, place the sample cup under the viscosity tube, and raise it to the appropriate position.

After entering the sample number in the computer software and clicking the run button, the software will automatically perform temperature control, flow time measurement, viscosity tube cleaning and drying.

After measuring the flow time, the VISCPRO software of miniAV-LT will automatically calculate the kinematic viscosity value of the sample.

● Complies with ASTM D445, D1655, D2532, DEF STAN 91:91, ISO 3104, IP71, ASTM D446, ISO 3105, GB/T 265 methods
● Particularly suitable for measuring the low-temperature kinematic viscosity of jet fuel, turbine oil and hydraulic oil, etc.
● Temperature range: -40℃ ~ +30℃
● Temperature stability: +/-0.02℃
● Viscosity range: 1 ~ 20,000 cSt (mm2/s)
● Constant temperature bath: 500ml
● Complies with ASTM D1655 and DEF STAN91:91, suitable for viscosity measurement of aviation fuel at -20℃
● Complies with the 3-hour or 72-hour thermal immersion time requirements specified in ASTM D2532 for aviation turbine oil, low to -20℃
● Suitable for kinematic viscosity measurement of hydraulic oil, turbine oil and transformer oil at -40℃, and up to 20,000 cSt (mm2/s) at -20℃
● Fully automatic sample loading, temperature control, testing, result calculation, cleaning, drying of the capillary viscometer and sample cup
● Windows version operation software, simple to operate
● Desktop design, compact in size, saving space and cost
● LIMS function
● Green Peltier cooling technology, built-in small air-water heat exchange system, no need to connect an external cooler
● Thermal sensor viscosity tube, each viscosity tube has a 10-fold wide viscosity range
● Cleaning: uses the technology of rapid heating to +30℃, automatically cleans and dries the viscosity tube using standard solvents, eliminating the common moisture problem
● Temperature probe built-in calibration points

D445 precision in a compact, robust design

Temperature range: -40 °C to +30 °C

Viscosity range: up to 20,000 mm2/s (cSt) in 10-fold increments

Fits in roughly the same bench-top area as an analytical balance

Peltier cooling is environmentally friendly and requires no pressurized coolants (an air-water heat exchanger is included)

A well tested CANNON viscometer platform offers reliability and dependable support

Fully automated bench-top testing and reduced consumable costs

Affordable alternative to labor-intensive manual KV testing

Single PC manages up to 4 instruments using VISCPRO®software

Automated vial washing & drying reduces vial consumption and replaces manual washing

Simplified maintenance & test versatility

Modular bath for easy maintenance access

Operators physically replace tubes in minutes, eliminating the need to schedule related service calls

Single-point temperature calibration avoids tube recalibration costs and maximizes test flexibility

Standard dual solvent input

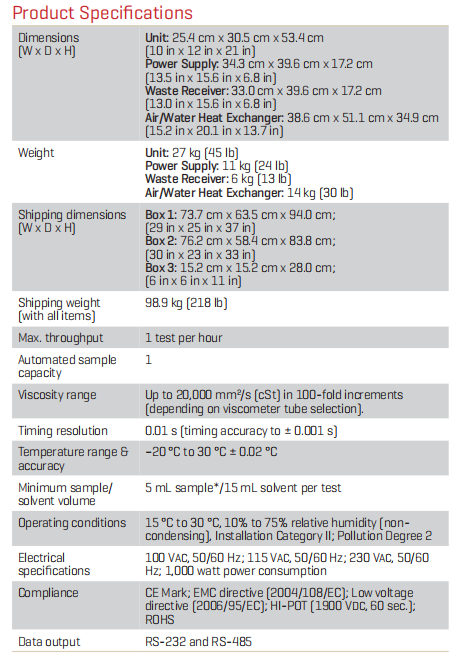

Dimensions (W x D x H)

Test unit: 25.4 cm x 30.5 cm x 54.3 cm

Power supply: 33.0 cm x 39.6 cm x 17.2 cm

Waste liquid component: 33.0 cm x 39.6 cm x 17.2 cm

Air/water heat exchanger: 38.6 cm x 51.1 cm x 34.9 cm

Weight

Test unit: 27 kg (45 lb)

Power supply: 11.0 kg (24.0 lb)

Waste liquid component: 6.0 kg (13.0 lb)

Air/water heat exchanger: 14 kg (30 lb)

Shipping dimensions (W x D x H)

Box No. 1: 73.7 cm x 63.5 cm x 94.0 cm

Box No. 2: 76.2 cm x 58.4 cm x 83.8 cm

Box No. 3: 15.2 cm x 15.2 cm x 28.0 cm

Shipping weight (all items)

98.9 kg (218 lb)

Maximum test throughput

Once per hour

Number of automatic sample injection ports

1

Viscosity range

Upper limit is 20,000 mm2/s (cSt), increasing by 10 times (depending on the type of viscosity meter selected)

Temporal resolution

0.01 s (timing accuracy ± 0.001 s)

Temperature range & accuracy

-40 °C to 30 °C ± 0.02 °C

Minimum sample volume/solvent usage

5 mL sample*/15 mL solvent per test

Operating conditions

15 °C to 30 °C, 10% to 75% relative humidity (non-condensing), installation class II; contamination class 2

Electrical specifications

100 VAC, 50/60 Hz; 115 VAC, 50/60 Hz; 230 VAC,50/60  Hz; 1,000 W power consumption

Verification test

CE mark; EMC directive (2004/108/EC); Low Voltage Directive (2006/95/EC); HI-POT (1900 VDC, 60 s.); ROHS

Data output

RS-232 and RS-485
